Location of taillight bulbs

Location of taillight bulbs - Introduction - Maintenance and specifications - Volvo S60 Owners Manual - Volvo S60

  1. Brake lights (LEDs)
  2. Brake light
  3. Backup light
  4. Turn signals
  5. Rear fog light (driver’s side only)

NOTE NOTE

If an error message remains in the display after a faulty bulb has been replaced, contact an authorized Volvo workshop.

Backup lights

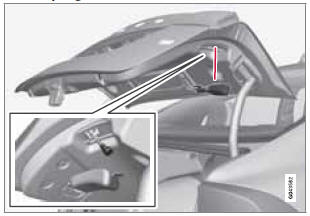

1. Open the panel on the inside of the trunk lid.

1. Open the panel on the inside of the trunk lid.

2. Remove the bulb holder by turning it counterclockwise.

3. Remove the defective bulb by pressing it in slightly and turning it counterclockwise before pulling it out.

4. Insert a new bulb, press it in slightly and turn it clockwise.

5. Put the bulb holder in place and turn it clockwise.
