Glove compartment
Glove compartment

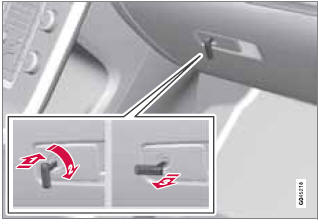

The glove compartment can only be locked and unlocked using the detachable key blade in the remote key. See page 61 for information on removing the key blade from the remote key.
1 Insert the key blade in the glove compartment lock.
2 Turn the key blade 90 degrees clockwise.
3 Remove the key blade from the lock.
See also:
Reinserting the key blade in the remote key
1. Hold the remote key with the slot for the key blade up.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove until it clicks into place. ...
Taking out the spare wheel
1. Open the floor hatch.
2. Undo the retaining bolt.
3. Lift out the foam block.
4. Lift out the spare wheel.
The other two blocks can remain in the spare
wheel well.
After use
The foam block ...
Instrument panel
1 Turn signal indicators – right/left
2 Text window – The text window displays
information and warning messages.
3 Temperature gauge – The pointer should
be approximately midway on the gauge
wh ...
