Re-installing the wheel

Re-installing the wheel  - Taking out the spare wheel - Changing a wheel - Wheels and tires - Volvo XC60 Owners Manual - Volvo XC60

1. Clean the contact surfaces on the wheel and hub.

2. Lift the wheel and place it on the hub.

Tighten the lug nuts
Tighten the lug nuts

3. Install the wheel nuts and tighten handtight.

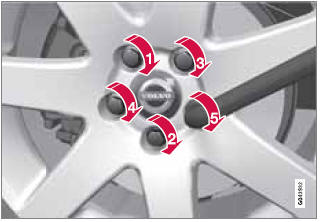

Using the lug wrench, tighten crosswise until all nuts are snug.

4. Lower the vehicle to the ground and alternately tighten the bolts crosswise to 103 ft. lbs. (140 Nm).

5. Install the wheel cover (where applicable).

The opening in the wheel cover for the tire's inflation valve must be positioned over the valve.
