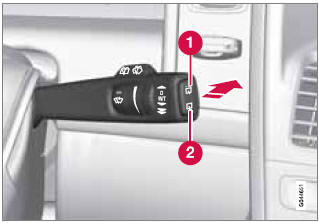

Tailgate wiper/washer
Move the lever forward to start the tailgate washer.
1 Intermittent wiping
2 Normal (continuous) wiping
NOTE
The rear wiper is equipped with cut-off function,
which means that it will not operate if
its electric motor overheats. The wiper will
function again after a cool-down period
(30 seconds or longer, depending on the
heat of the motor and ambient temperature
conditions).
