Interior lighting, rear


Rear reading lights
The lights are switched on or off by pressing each respective button.
Courtesy lights/door step lighting*
The courtesy lights/door step lighting switch on/off automatically when one of the front doors is opened/closed.
Glove compartment lighting
The glove compartment lighting switches on/ off automatically when the lid is opened/ closed.

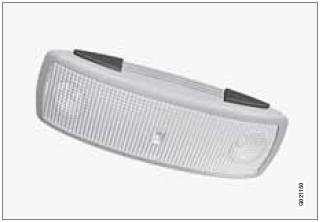

Overhead courtesy lighting
The passenger compartment lighting is switched on and off automatically when button (3) is in the neutral position.
The lighting comes on and remains on for 30 seconds if:
- the vehicle is unlocked from the outside with the key or remote control
- the engine is switched off and the ignition is in mode 0.
The lighting switches off when:
- the engine is started
- the vehicle is locked from the outside.
The lighting comes on and remains on for two minutes if one of the doors is open.
The passenger compartment lighting can be switched on and off manually within 30 minutes after the vehicle has been unlocked.
If the lighting is switched on manually and the vehicle is locked, the courtesy lighting will switch off automatically after one minute.
Trunk lighting
The trunk lighting comes on automatically when the trunk lid is opened.
See also:
Reporting safety defects in Canada
If you believe your vehicle has a defect that could cause a crash or could cause
injury or death, you should immediately inform Transport Canada in addition to notifying
Volvo Cars of Canada Corp. ...
Tire sealing system–overview
Speed limit sticker
On/Off switch
Electrical wire
Bottle holder (orange cover)
Protective hose cover
Air release knob
Hose
Bottle with sealing compound
Air pressure gauge
...
Tire sealing system–overview
1 Speed limit sticker
2 On/Off switch
3 Electrical wire
4 Bottle holder (orange cover)
5 Protective hose cover
6 Air release knob
7 Hose
8 Bottle with sealing compound
9 Air pressure gauge
...
