Immobilizer (start inhibitor)

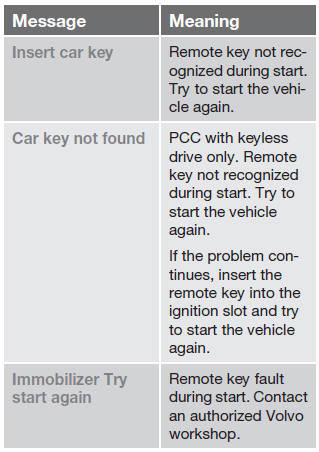

Each of the keys supplied with your vehicle contains a coded transponder. The code in the key is transmitted to an antenna in the ignition slot where it is compared to the code stored in the start inhibitor module. The vehicle will start only with a properly coded key. If you misplace a key, take the other keys to a trained and qualified Volvo service technician for reprogramming as an anti-theft measure. The following messages (which may appear in the instrument panel display) are related to the immobilizer:

CAUTION
Never use force when inserting the remote key in the ignition slot. The vehicle cannot be started if the transponder is damaged.
This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Canada–IC: 3659A-WFS125VO
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
See page 114 for information on starting the vehicle.
See also:
Ignition mode I
NOTE
To access ignition modes I or II without starting
the engine, the brake pedal must not be
depressed.
- With the remote key fully pressed into the
ignition slot, press START/STOP
ENGINE ...
