Turn signals

Turn signals - Replacing bulbs - Maintenance and specifications - Volvo XC60 Owners Manual - Volvo XC60

1. Remove the headlight housing from the

1. Remove the headlight housing from the vehicle (see page 322).

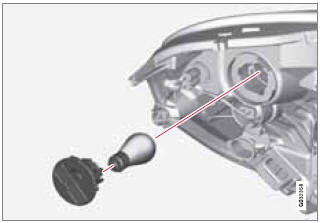

2. Remove the bulb holder by turning it counterclockwise and pulling it out of the headlight housing.

3. Pull out the holder to access the bulb.

4. Remove the burned out bulb by pressing it in slightly and turning it counterclockwise.

5. Press the new bulb into the holder and turn it clockwise.

6. Reinsert the bulb holder into the headlight housing and turn it clockwise.

7. Reinstall the headlight housing.
